Panasonic KX-TA 308 Keyphone System



The Panasonic KX-TA 308 is an "Advanced Hybrid System", ideal for a small business or home office requiring a flexible system with a high degree of sophistication. With the power, flexibility, and expandability to accommodate your growing business, your communication will improve immensely and you business will run smoothly. This system supports 3 outside (CO) lines and 8 extensions With optional cards, you can easily expand your system capacity up to 6 outside (CO) lines and 24 extension as your needs grow You can connect a variety of communication devices, such as cordless phones, answering machines, computer modems, credit card verifiers, fax machines, and any other device that works with conventional telephone lines.

  • Up to 6 CO lines and 24 extensions*
  • Hybrid system
  • Direct Inward System Access (DISA) without message
  • Direct Inward System Access (DISA) with message*
  • Automatic fax transfer*
  • Uniform Call Distribution (UCD) with message*
  • Call forwarding (Busy/No Answer/Follow-Me/Outside)
  • Day/Night/Lunch mode
  • Battery backup interface*
  • Doorphone call/door Opener interface*
  • 5-party conference
  • Emergency call
  • Account code entry (Option/Force/Verified)
  • Room monitor
  • Station Message Detail Recording (SMDR)
  • Voice mail integration*
    *An optional card/equipment is required

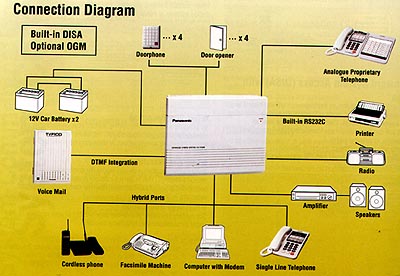

Flexible and Simple Expansion

By adding optional cards, you can expand the system from 3 COs / 8 extensions to 6 COs / 24 extensions* to meet your changing needs. No additional programming or costly rewiring is required.


Battery Backup Interface (Built-in)

The system is equipped with a built-in battery interface which provides full system operation in the event of a power failure.
An optional connecting cable is required.


4 Doorphones / Door Openers (Option)

Up to 4 doorphones and door openers can be installed.


Calling Activity Reports for Cost Saving

The system can provide a hard copy record of calling activity via RS-232C to manage your telephone expenses more effectively.

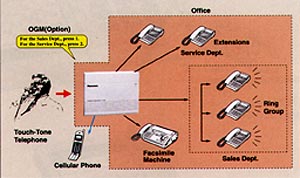

Direct Inward System Access (DISA) with Message*

Outside callers can access any extension without an operator. An outgoing message (Max.30 seconds) is available with optional OGM card.


Uniform Call Distribution (UCD) with Message*

For handling many incoming calls quickly and efficiently, this feature allows incoming calls to be distributed uniformly to a group of extensions.

(UCD Hunting routes the call systematically until it finds an idle extension)



Caller ID*

The system is compatible with Caller ID, which allows a user to see the caller's information on Analogue Proprietary Telephones. Proprietary display telephones can be used to access the Caller ID log for the 5 most recent calls (Call Log).
Please contact your dealer or phone company to confirm if the Caller ID service is available in your area.

* An optional card is required.


Voicemail Integration (Optional)*

The Panasonic Voice Processing System is a optional system meant to be integrated with the keyphone system. It acts as a quick and user-friendly receptionist to prevent communication barriers with your customers and colleagues. It provides announcements, holiday / general greetings, menu services & mail boxes for individual users . Non stop , 24 hours a day , 7 days a week.




Trademarks and brand names are the properties of their respective owners.
